Universal Fluid Drawer Removal and Replacement List

Note—A Firmware Installation procedure must be performed when replacing a module or PCB.

• Universal Fluid Drawer Module

Universal Fluid Drawer Subassemblies

• Auto Detect 1, Auto Detect 2, and Oil Solenoid
• Bleach Bottle Fitting
• Bleach Bottle Tubing Replacement Procedure (Solvent Bonded Connection)
• Bleach Sensor
• Bottle Straw Connections
• Deactivation Buffer A (Blue) RFID Antenna
• Deactivation Buffer B (Green) RFID Antenna
• Magnetic Latch Installation
• RFID Display Flex Cable
• Wash Buffer A (Red) RFID Antenna
• Wash Buffer B (Yellow) RFID Antenna
• Wash and Deactivation Buffer Solenoid Valve Removal and Replacement

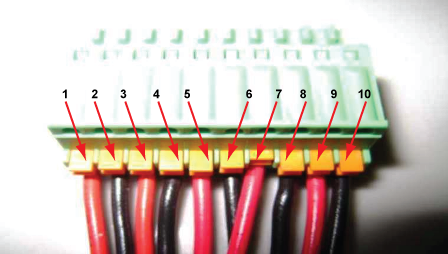

• Universal Fluids A/B Solenoid Valve Wiring Orientation



  Red	Wash Solution Valve
  Black	Wash Solution Valve
  Red	Buffer Valve
  Black	Buffer Valve
  Red	Auto Detect 1 Valve
  Black	Auto Detect 1 Valve
  Red	Auto Detect 2 Valve
  Black	Auto Detect 2 Valve
  Red	Oil Valve
  Black	Oil Valve
