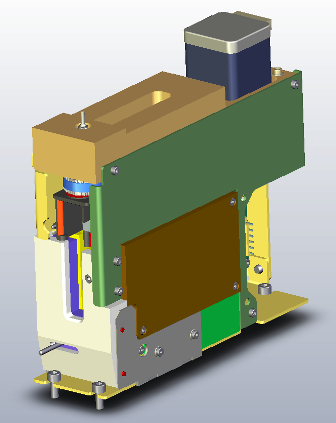

Amp Load Station Module Removal and Replacement

Parts and Materials Required

• Proper PPE

• Hex wrench, 4 mm long (long shank preferred)
• LOAD STATION, MODULE

Time Required

• 30 minutes

Removal Procedure

	Wear clean nitrile gloves while performing the following procedures.
	MTUs may be present in module. It is necessary to remove all MTUs to avoid contamination.

1. Put on proper PPE.

2. Clear MTUs using one of the following methods
   • Reboot the Panther System main software.

     Or

   • Start Service Software, navigate to the Service Software System tab, and click Clear MTUs.



3. Close Service Software, if necessary, and power down the Panther System.
4. Carefully slide the Service drawer out 1/4 of the way to access the Amp Load Station module. Pay careful attention that no cables, lines, or hoses are caught when opening the drawer.

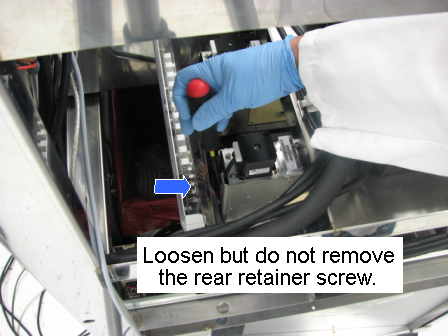

5. Using a long shank 4 mm hex wrench, loosen the 5 mm socket head cap screw that secures the rear of the Amp Load Station. This screw may be difficult to see due to the wires in the rear of the module. The screw does not need to be removed; it only needs to be loosened to allow the module to slide out from under it.

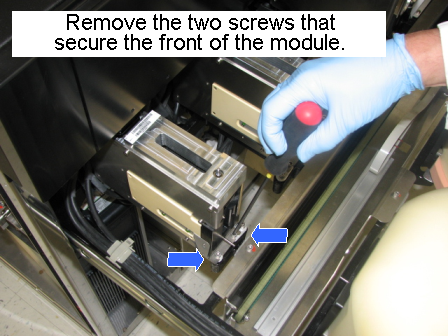

6. Using a 4 mm hex wrench, remove the two 5 mm socket head cap screws from the front of the module.



7. Open the Service Drawer 3/4 of the way.
8. Slide the module toward the front of the system to free it from the rear screw.

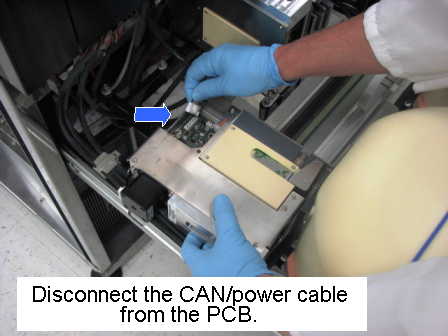

9. Disconnect the CAN/power bus from the PCB.



10. Lift the module out of the Service Drawer and place on a properly prepared work surface.

Note—If returning the module, decontaminate the module and complete the COD/OBF/RMA Form [19-02-APX-A].

Replacement Procedure

1. Verify the following DIP switch settings:

   DIP Switch	Amp Load Station
   1	ON
   2	OFF
   3	OFF
   4	OFF

2. Reverse the removal procedure.
3. While watching that no hoses or cables are caught, carefully push the Service Drawer into the system and confirm that all latches are properly locked.
4. Close the left panel door.
5. Power on the Panther System.
6. Install Firmware to the module.

Alignment/Calibration

1. Using Service Software, teach the Distributor to the Amp Load Station.
2. Teach the Pipettor to the Amp Load Station.

Verification

1. Perform a System Level Operational Qualification.
2. Verify that the Amp Load Station's temperature and mixing speed are within their acceptable ranges.
