Closing the Service Drawer

Parts and Materials Required

• None

Procedure

1. Verify that both pipettor arms are fully up
2. Carefully push the Service Drawer into the system until the main drawer latches.

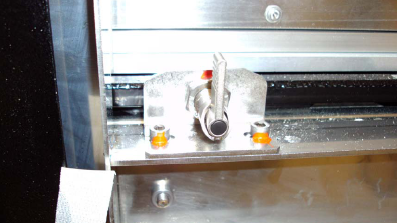

3. Move the locks on both sides of the system to their upward positions.



4. After turning the locks to the locking position, push the drawer in to ensure proper locking.
5. Screw in the Luminometer injectors.
6. Close the right and left side panel doors.
