DIP Switch Verification

Note—Best practice is to adjust switches when the system is off.

DIP Switch Location

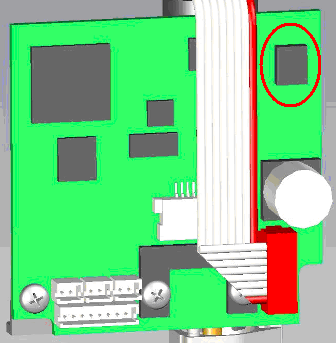

The red circle indicates DIP switch location.

Switch Settings

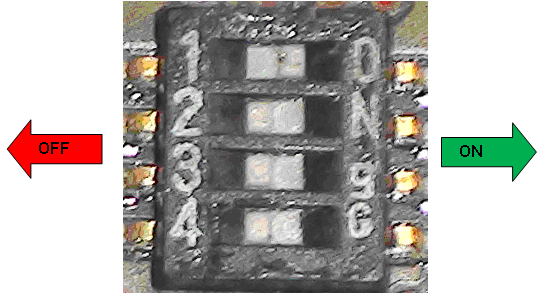

Close-up of the circled region above. Image is of a Reagent Pipettor DIP switch, with switches 1–4 in the OFF position. Turn the switches on and off by sliding the switches as shown.

COP

DIP Switch	COP 1	COP 2
1	OFF	ON
2	OFF	OFF
3	OFF	OFF
4	OFF	OFF

Incubators

DIP Switch	Transition Incubator	HT Incubator	Amplification Incubator
1	ON	OFF	OFF
2	OFF	OFF	ON
3	OFF	OFF	OFF
4	OFF	OFF	OFF

Load Stations

DIP Switch	HPAHybridization protection assay—The Hologic HPA technique uses a specific DNA probe, labeled with an acridinium ester detector molecule that emits a chemiluminescent signal. Load Station	Amp Load Station	Sample Mix Station
1	OFF	ON	OFF
2	OFF	OFF	ON
3	OFF	OFF	OFF
4	OFF	OFF	OFF

Mag Wash

DIP Switch	Mag Wash 1	Mag Wash 2
1	OFF	ON
2	OFF	OFF
3	OFF	OFF
4	OFF	OFF

Pipettors

DIP Switch	Reagent Pipettor	Sample Pipettor	Fusion Pipettor
1	OFF	ON	ON
2	OFF	OFF	OFF
3	OFF	OFF	OFF
4	OFF	OFF	OFF

REAGENT configuration is shown on LEFT below (DIP Switch 1 value is “OFF”).
SAMPLE/FUSION is shown on RIGHT below (DIP switch 1 value is “ON”).

Pumps

DIP Switch	Oil Pump	Wash Pump	Peristaltic	AD1	AD2
1	ON	OFF	OFF	OFF	ON
2	OFF	OFF	OFF	ON	ON
3	OFF	OFF	OFF	OFF	OFF
4	OFF	OFF	OFF	OFF	OFF

RTF

DIP Switch	RTF1 FAM (BL)	RTF2 HEX (GR)	RTF3 ROX (AMAnalytical Module)
1	OFF	OFF	OFF
2	ON	OFF	ON
3	ON	ON	OFF

Fusion

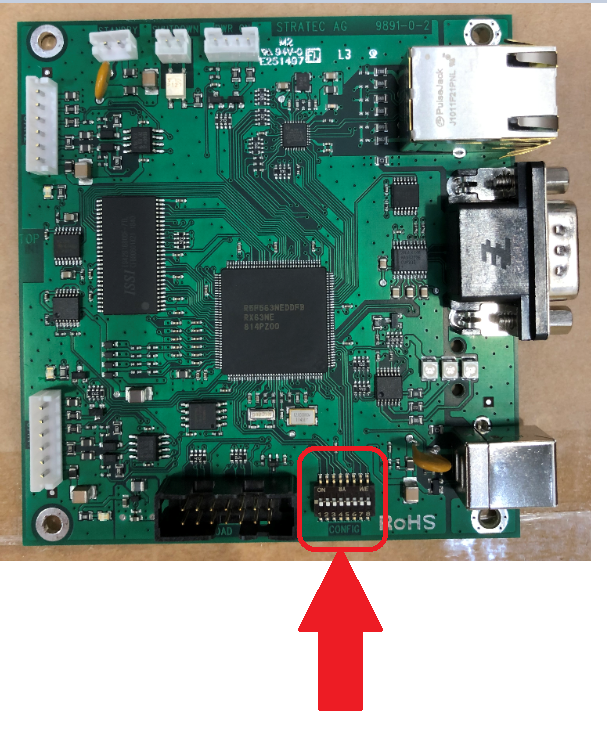

Ensure the Sidecar COP’s 8 dip switches are all OFF (facing down).
