MTU Input Queue Flex Cable Removal and Replacement

Parts and Materials Required

• Proper PPE

• Hex key, 2.5 mm
• Hex key, 4 mm

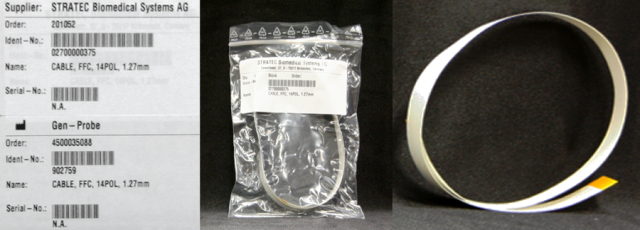

• MTU INPUT Q, FLEX CABLE

Time Required

• 50 minutes (does not include re-teaching the Distributor)

Removal Procedure

1. Put on proper PPE.

2. Remove the MTU Input Queue.

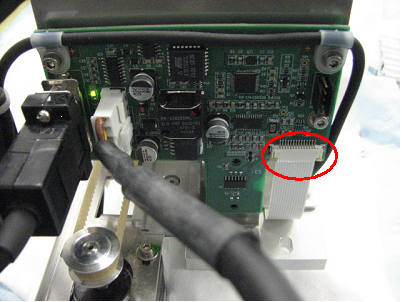

3. Disconnect the flex cable from the master PCB.

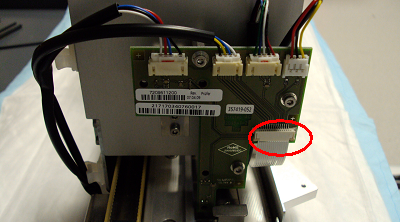

4. Disconnect the other end of the flex cable from the slave PCB.

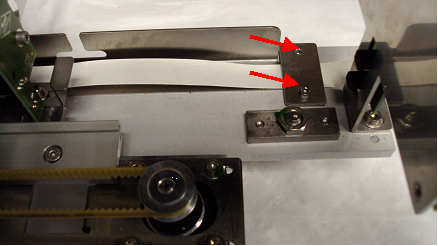

5. Remove the two screws and remove the flex cable holding plate.

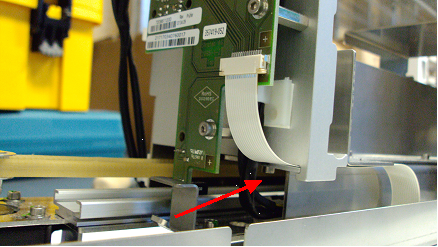

6. Remove the second flex cable holding plate.



7. Remove the flex cable.

Replacement Procedure

1. Reverse the removal procedure.
2. Verify that all screws are in place.

Alignment/Calibration

1. Align the Distributor to the MTUMulti-tube unit—Container used to process tests in the instrument. An MTU contains five separate reaction tubes. The MTU is moved through the instrument by the linear distributor and includes five tiplets for pipettiing to be used in the mag wash station. Input Queue.

Verification

1. Using Service Software, verify that the drawer sensor reads "Out" when the drawer is open and "In" when the drawer is closed.
   1. Place one or more MTUs in the Input Queue.
   2. Press Push MTU. Let the module pack and count the MTUs.
   3. Press Read to get the sensor readings of the Input Queue. The Drawer sensor should read IN, the Packing Sensor should read OUT, the MTU-Pusher sensor should read IN and the Packing Rear Sensor should read IN.



   4. Press Unlock Drawer. Wait until the drawer unlocks but do not open the drawer.
   5. Press Read to get the sensor readings of the Input Queue. The Drawer sensor should read IN, the Packing Sensor should read OUT, the MTU-Pusher sensor should read IN and the Packing Rear Sensor should read OUT.



   6. Open the Input Queue drawer.
   7. Press Read to get the sensor readings of the Input Queue. The Drawer sensor should read OUT, the Packing Sensor should read OUT, the MTU-Pusher sensor should read IN and the Packing Rear Sensor should read OUT.



   8. Remove all MTUs from the Input Queue, including the last MTU that has been packed.
   9. Close the Input Queue Drawer and press Push MTU. Let the module attempt to pack and count MTUs.
   10. Press Read to get the sensor readings of the Input Queue. The Drawer sensor should read IN, the Packing Sensor should read IN, the MTU-Pusher sensor should read OUT and the Packing Rear Sensor should read IN.



2. Perform a System Level Operational Qualification.
