Install Waste-to-Drain Bottle Straw Fitting in the Removable Waste Bottle

Parts and Materials Required

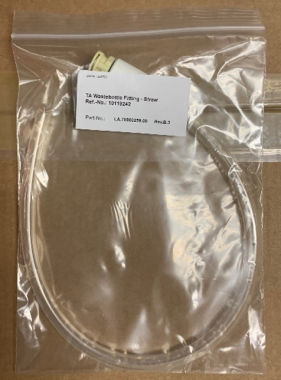

• Removable Waste Bottle Straw Fitting



Procedure

1. Remove the Waste Bottle cap to allow access to the inside of the Waste Bottle.

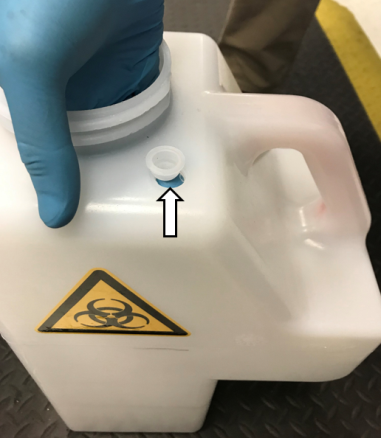

2. Remove the plastic plug from the top of the removable Waste Bottle.

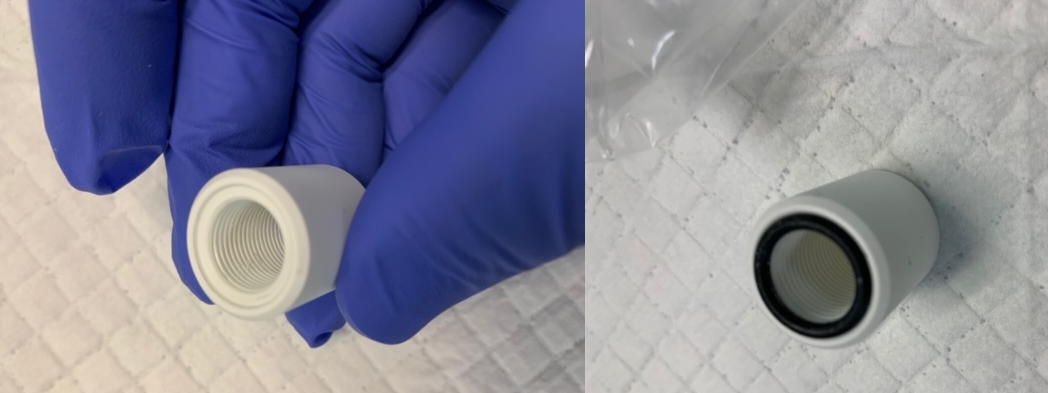

3. Secure the fitting o-ring into the groove on the Plastic Fitting ring.




4. Add high vacuum grease to the fitting ring and o-ring.

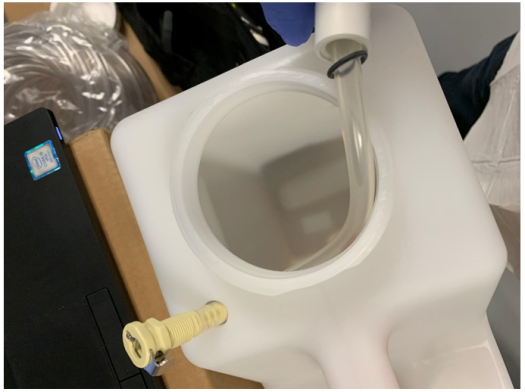

5. Feed the straw through the top of the waste bottle, install the o-ring and fitting as shown and tighten the fitting.
   Ensure a tight seal with the inner part of the bottle and tubing..



6. Reinstall the removable Waste Bottle into the Waste Drawer.
7. Proceed to Installation of the Waste to Drain Hardware
