FSE Tools

Standard Tools

Tool Description Manufacturer

Small clear trunk stock kit

   Marshalls

ClosedMetric ball end driver set

Extra long metric set includes: 1.5 mm x 11", 2 mm x 11", 2.5 mm x 11", 3 mm x 10.6", 4 mm x 10.5", 5 mm x 10.5" Bondhus

ClosedSet of standard Allen wrenches

Set of 6 hex keys (1.5, 2, 2.5, 3, 4, and 5 mm) TECRA

10" adjustable wrench

 10" extra-wide adjustable wrench TECRA

ClosedRatcheting screw driver set

Ratchet, driver handle, extension, 12 Allen type hex bits (0.050"–5/16"), five screwdriver bits (3/16", 1/4", 3/8" slot and #1 and #2 Phillips), 1/4" square drive adapter, and six metric hex bits (1.5 mm–5.0 mm) in a rugged plastic case TECRA

ClosedNut driver set

8.0 mm, 7.0 mm, 5.5 mm, and 4.5 mm wiha Tools

ClosedTubing cutter

Tubing cutter from 1/8" to 1-1/8" in diameter TECRA

Closed6" vise grip long nose pliers

  TECRA

ClosedWire cutters

  TECRA

ClosedFlashlight

Heavy duty Rayovac industrial flashlight TECRA

ClosedESD wrist strap

0.2 lbs TECRA

Specialty, Custom, and Calibration Tools

Tool Description Manufacturer Part Number SAP PN Required for Module
Specialty Tools





ClosedFlare Tubing Tool Kit


Calibration Tools





ClosedMultimeter

Digital Fluke 179 meter with certificate Techni-Tools 374TE0179 TDB Entire system

ClosedShock Compression Tool



Teach Tools

Tool Description Manufacturer Part Number SAP PN Required for Module

ClosedTCRClosedTarget capture reagent—An assay-specific reagent added as part of specimen pipetting. Teach Tool

        Teach Tool for Parameters

ClosedReagent Rack Teach Tool



ClosedPipettor DiTi Cap

DiTi cap used for Pipettor Auto Teach and Pipettor Integrity Check TBD   902642 Pipettor Integrity Test

ClosedInput Queue Teach Tool

Used for teaching the Linear Distributor to the Input Queue or MTUClosedMulti-tube unit—Container used to process tests in the instrument. An MTU contains five separate reaction tubes. The MTU is moved through the instrument by the linear distributor and includes five tiplets for pipettiing to be used in the mag wash station. Queue     TLS-06359 Input Queue and MTU Queue

ClosedMTU Queue Teach Tool

Used for teaching the MTU Sidecar Scissor to the MTU Queue.     TLS-06904 MTU Sidecar and MTU Queue

Other Tools

Tool Description Manufacturer Part Number SAP PN Required for Module
Crating/Uncrating





Cordless Screwdriver

 Battery, Milwaukee Techni-Tool 5Y503B TBD Crating/uncrating
Lubricants and Others





Loctite 242

   Marshalls TBD TBD Entire system

Dow Corning High Vacuum Grease



Teflon-based Grease

   Marshalls
Cooling Module

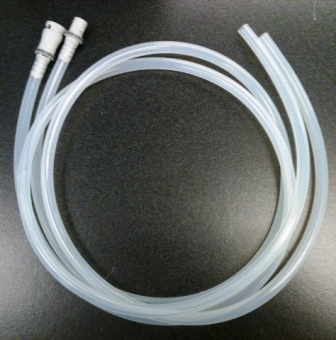

ClosedCooling Module Fill Tube Tubing Assembly

Used to fill the Cooling Module
