Universal Fluid Drawer Solenid Valve Inspection

What is Affected

Some Wash/Deactivation Buffer solenoid valve spares [902844] are missing their port connector. The solenoids cannot be used if the port connector is missing. Any parts found in FSE trunk stock or received from stock must be returned to the supplier for replacement. Instructions are provided below.

Check all [902844] spares in trunk stock or on receipt to determine if parts are suitable for use. Return any parts that are not useable.

Time Required

• 5 Minutes

Procedure

1. Remove the solenoid [902844] from the packaging.

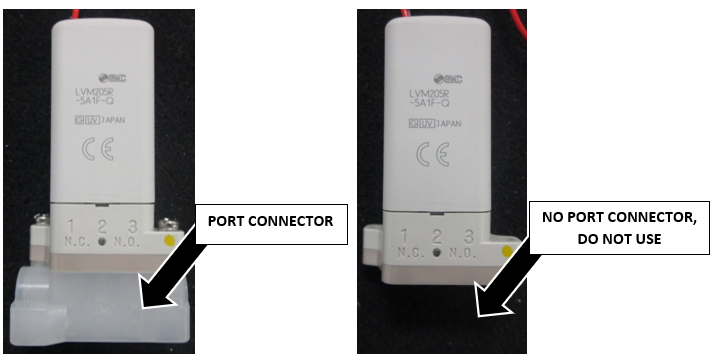

2. Visually inspect and verify that the bottom plastic port connector is present.
3. If the port connect is NOT present, then return the solenoid.
4. Contact Technical Support for return instructions.
