Bleach Concentration Label Installation

Due to changes in Clorox’s bleach specifications, bleach concentration levels for use on the Panther have been updated.
A new bleach concentration label must be installed on the UFD tub to reflect this change.

Note—
The concentration levels have changed from [5% - 7%] to [5% - 8.25%].

Parts and Materials Required

  • New Bleach Concentration Label

Procedure

  1. Pull out the Universal Fluid Drawer.

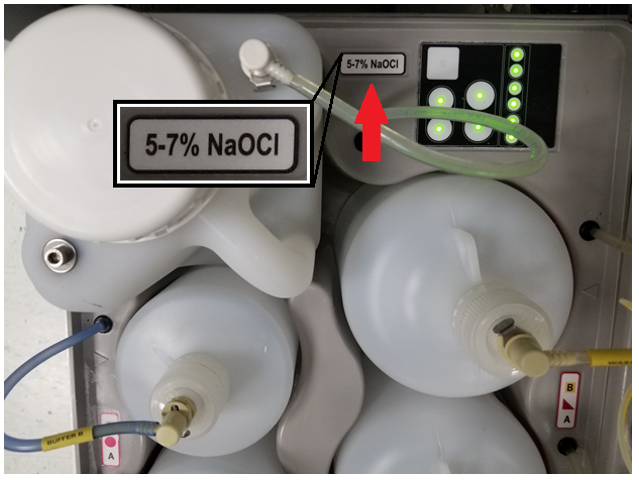

  2. Identify the location of current Bleach Concentration Label, Universal Fluid Drawer

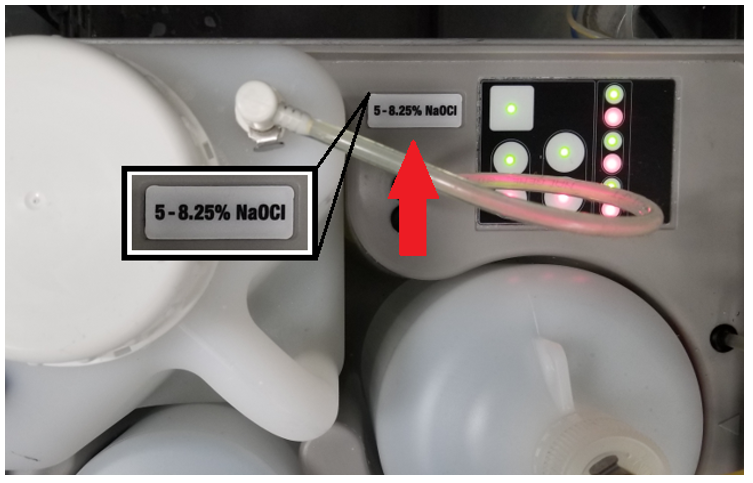

  3. Place the new label over the existing label.

Verification

  1. Press down on the label to ensure it’s secure.
  2. Close the Universal Fluid Drawer.
