New TCR Teach Tool for Molded TCR Carousel
Information
This new TCR
Target capture reagent—An assay-specific reagent added as part of specimen pipetting. Teach Tool is required for pipettor alignment with the Molded TCR Carousel. When performing pipettor alignment the tool is used in the same method as the previous TCR Teach Tool.
This new TCR Teach Tool should only be used on the molded version of the TCR Carousel.
The Molded TCR Carousel was cut in on Panther System Serial #00827 and above.

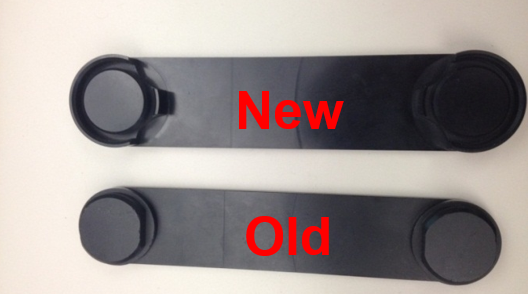

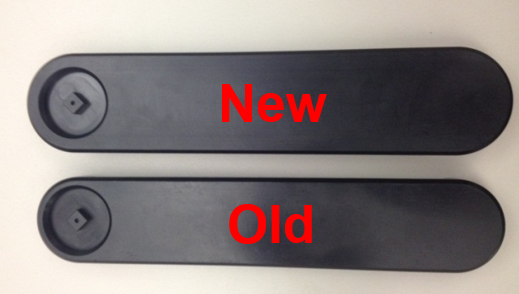

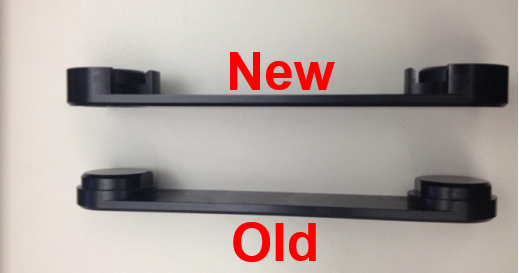

Note the differences between the new and old tool in the images below.
| Module | Module PN | Teach Tool Part # |
| Molded TCR Carousel | 903856 | MME-02076 |
| TCR Carousel | 902881 | 903052 |
