Saving Teach Coordinates and Exiting Teach Software

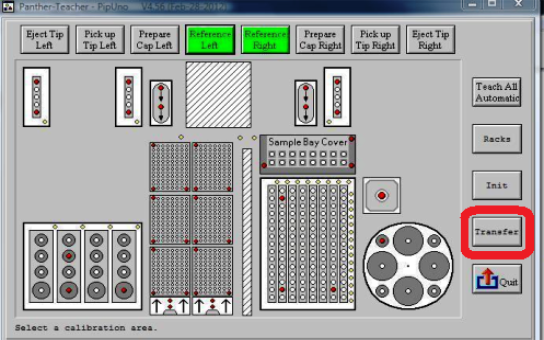

1. Click Transfer.

   The procedure takes several minutes to complete.



2. Click Quit.

   A dialog box appears.

3. When the dialog box appears, select Cancel.
4. Replace the Pipettor partition wall.
   1. Slide the partition wall down so that the brackets align in the wall slots.



   2. Tilt the partition to the left while lifting to remove.



5. Replace the Reagent Bay bottom cover.
6. Replace the Reagent Bay shutter (top cover)
