Auto-Teaching Tip Trays

Note—The Reference Point must be taught for both left Reagent Pipettor arm and the right Sample Pipettor arm.

1. Remove the Tip Trays. Ensure that no Tip Trays are in the Tip Drawers.

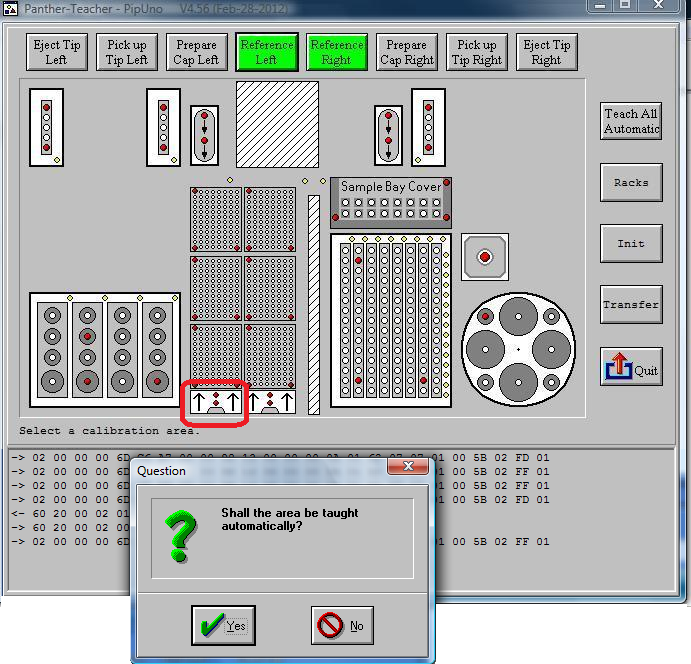

2. Highlight white box on left Tip Drawer and press Yes in the dialog box that opens.



3. Press Yes.
4. Press OK.

   Note—Be sure to push the Tip Drawers all the way in.

5. Wait until the Reagent and Sample Pipettor arms return to the home position.
6. Repeat Steps 2–5 for the right Tip Tray.

   Teach positions turn green after the procedure completes
