Airspace Partition Removal and Replacement

Parts and Materials Required

• Proper PPE

• FSE Tool Kit
• Bench Top Pads

Time Required

• 5 Minutes

Removal

1. Put on proper PPE.
2. Power down the system and PC.

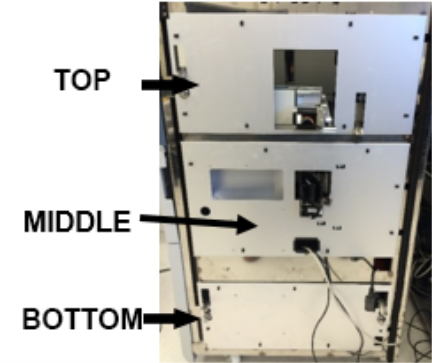

3. When the Fusion is unfused from the Panther, remove the desired partition (Top, Middle, Bottom) by gently pulling out until free from retainer clips and set on bench pads.



Replacement

1. Reverse the Removal procedure.

Verification

• None.
