Magnetic Wash Station Module Drip Shield Installation

Parts and Materials Required

• Proper PPE

• 4 mm Allen wrench
• 3 mm Allen wrench
• Absorbent pad

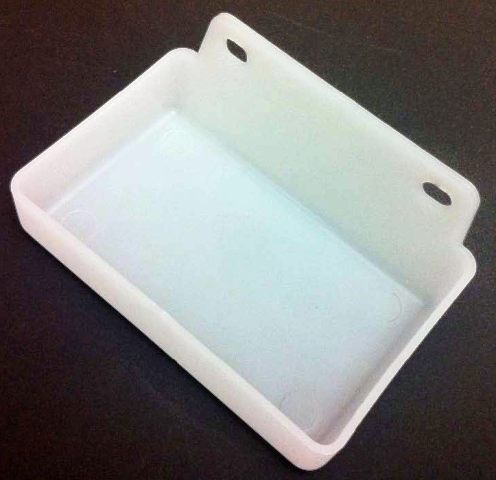

• MAGWASH DRIP SHIELD



Time Required

• 30 minutes

Procedure

1. Put on proper PPE.
2. Power down the Panther System.
3. Open both side panel doors.

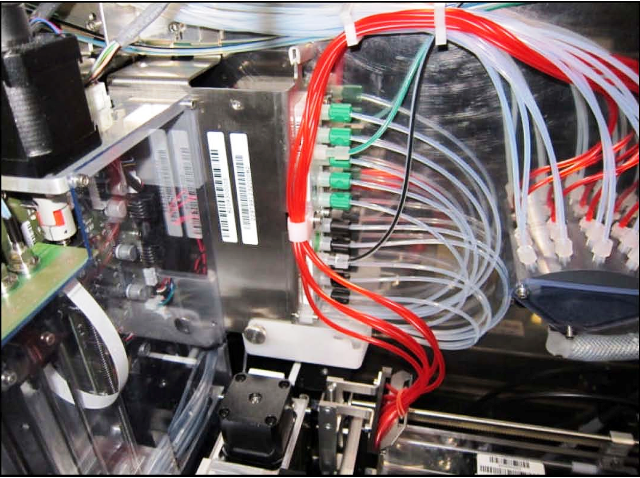

4. Place the drip shield under the left Magnetic Wash Station and secure it with an M4 thumbscrew found on the side of the Magnetic Wash Station.

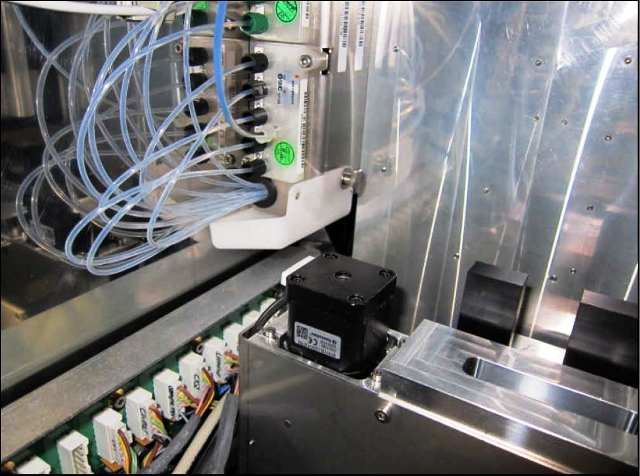

5. Place the drip shield under the left Magnetic Wash Station and secure it with an M4 thumbscrew found on the side of the Magnetic Wash Station.



6. Close the side panel doors.

Verification

N/A
