Barcode Scanner Bracket Installation

Parts and Materials Required

  • 2 mm hex key
  • 2.5 mm hex key
  • 3 mm hex key

Time Required

  • 5 minutes

Procedure

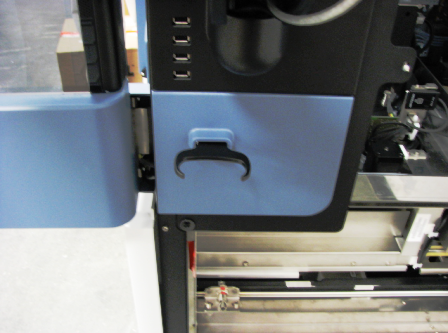

  1. ClosedInstall the barcode reader bracket below the monitor arm using two 2.5 mm screws from inside the Panther System.
  2. Plug the barcode scanner into the USB port located below the monitor and hang the scanner on the bracket.
