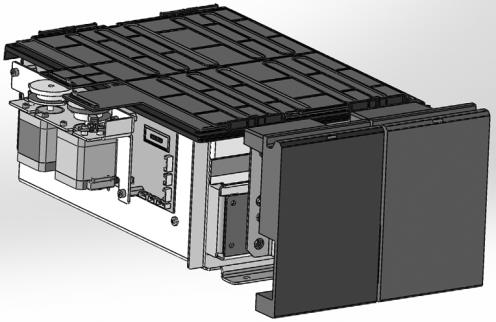

Reaction Tube Tray Drawers General Information

Fusion Module contains two (2) Reaction Tube Tray Drawers. Each drawer holds two (2) trays of Reaction tubes and caps (112 tubes/112 caps per drawer). Each Reaction Tube Tray Drawer has an interlock that ensures that the drawer cannot be opened if in use during assay processing. Each drawer has two (2) RFID antennas, one (1) for each tray position. Both drawers are physically covered by two (2) actuated shutters that open and close to accommodate pipetting and picking.
