Adjusting the Panther System Monitor

Parts and Materials Required

• Adjustable wrench
• 4 mm hex key

Time Required

• 10 minutes

Procedure

1. Locate the Panther System monitor that requires adjustment.

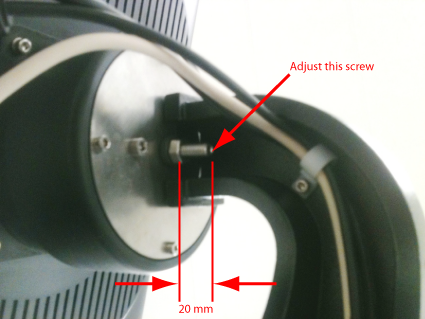

2. Verify that approximately 20 mm of the adjustment screw's thread is exposed as shown in the following photo.

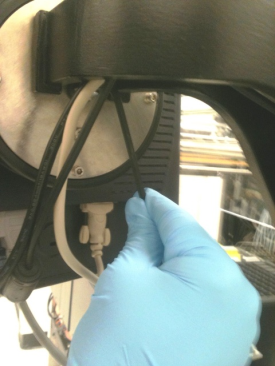

3. Using a hex key, tighten the adjustment screw until the monitor does not collapse downward, and stays firmly in place.
